Carolina Tarps Tarp Motor for Dump Truck 1.5hp 50:1 Universal 12V Electric Tarp System Motor

Price: $150.00
(as of Mar 27,2022 15:20:39 UTC – Details)

Our tarp motor will have your electric tarp system back up and running in no time, due to the wide compatibility and universal bolt pattern. The 1.5 horsepower and 50:1 gear ratio make it one of the strongest, fastest motors. It is ideally suited for most dump beds up to 28 feet.

Specifications
Type: Direct Drive
Gear reduction: Worm to Wheel
Gear ratio: 50:1
Mounting: Three 5/16 – 18 Grade 5 minimum bolts
Output Shaft: 3/4″ using 5/16″ through hole
Voltage: 12V
Operating torque: 44 NM
Current Draw @ rated torque: 40 Amps
Power: 1.5 hp
Braking: Inherent
Dimensions: L:12″, W:6.5″, H:4″
Reversible action motor includes chrome housing and 3 year warranty.

Mounting
Slim Motors have three 5/16″-18 x 1/2″ deep mounting holes on the output shaft side of the gearbox. All three mounting holes should be used when mounting the direct drive motor unit to the bulkhead (drilling new holes or welding the gearbox or other parts of the unit will void the motor’s warranty).
Opening, separating, or otherwise tampering with motor and gearbox will void warranty.
Coupling
The gearbox has a 3/4″ diameter output shaft with a 5/16″ diameter through hole. To minimize stress on your motor and gearbox, avoid the use of oscillating loads and attach tubes as straight as possible to the output shaft.

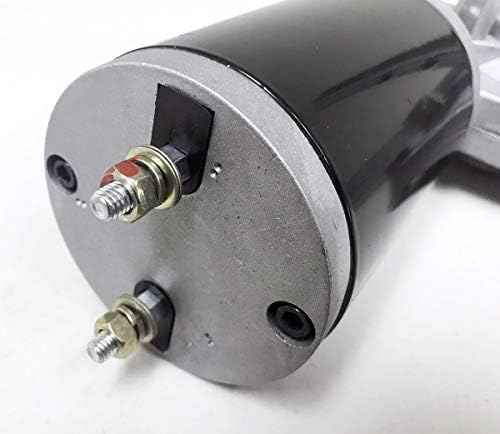

Electrical Installation
Complete a thorough check and installation of all wiring while all cables are unattached. Where necessary, securely fasten all wiring to adjacent structure using cable ties.

Due to electric motor efficiency and electric power available from your vehicle’s battery or alternator, these units are rated for intermittent use. Use for short periods of time only, allowing it to cool between uses. If your motor becomes too hot to touch, stop operation and allow it to cool. Recommended wire is 6 or 8 gauge.
50:1 Gear Ratio, 1.5 HP, 12V Direct Current, 40 Amps, Reversible Action, 44 NM Operating Torque. One of the FASTEST, Strongest Electric Tarp Motors Available.
UNIVERSAL FIT for Dump Bodies up to 28 feet. Dump Truck Tarp Motor has a 3/4 inch output shaft and a 5-bolt mounting pattern works with most Electric Tarp Systems.
Output shaft is 3/4 inches thick and 3-3/4 inches long with a 5/16″ hole drilled at 1 inch and at 2 inches for best fit.
INCLUDES reflective chrome housing, all necessary mounting hardware, and 3-Year warranty
3-YEAR WARRANTY: This electric tarp motor will deliver years of speed, strength, and reliability under normal use. Due to electric motor efficiency and electric power available from your vehicle’s battery or alternator, these units are rated for intermittent use. Use for short periods of time only, allowing it to cool between uses. If your motor becomes too hot to touch, stop operation and allow it to cool. Recommended wire is 6 or 8 gauge.
